AMEISON manufacturer Outdoor Omnidirectional Antenna 5dbi SMA male 800-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system

Name: AMEISON manufacturer Outdoor Omnidirectional Antenna 5dbi SMA male 8002700mhz for GSMCDMAPCS3GWLANLTE system
Brand: AMEISON
Price: 1 USD

China AMEISON manufacturer Outdoor Omnidirectional Antenna 5dbi SMA male 800-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system wholesale

Brand Name : AMEISON

Model Number : AMXF-8027-5

Certification : ISO 9001: 2008

Place of Origin : China

MOQ : 100

Price : EXW Price

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

Delivery Time : 10-20 working days

Packaging Details : PP bag /inner box/master carton or customized

Product name : Omnidirectional Antenna

Frequency : 806～960/1710～2500mhz

Gain : 5dBi

VSWR : ≤1.5

Impedance : 50Ω

Polarization : Vertical

connector type : N female

Dimensions : Φ60*230

color : White

Contact Now

AMEISON manufacturer Outdoor Omnidirectional Antenna 5dbi SMA male 800-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system

Feature :
●Exquisite appearance
●Good impact resistance,
waterproofing and anticorrosion ability
●Full day working
●Optimized dimension
●low standing wave,strong anti-interference ability
Application :
●CDMA/GSM/PCS/3G/4G/LTE/WLAN system
●Point-to-multipoint system

AMEISON manufacturer Outdoor Omnidirectional Antenna 5dbi SMA male 800-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system

AMXF-8027-5 Electrical Specifications
Frequency range(MHz)	806-960 / 1710-2700
Bandwidth(MHz)	154 / 990
Gain(dBi)	3 / 5
Half-power beam width(°)	H:360 V:55
VSWR	≤2.0
Input Impedance(Ω)	50
Polarization	Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Cable length (cm)	30
Input connector type	SMA male
Mechanical Specifications
Dimensions (mm)	Φ60*230
Antenna weight(kg)	0.6
Cable length (cm)	30
Operating temperature(°c)	-40～60
Rated Wind Velocity(m/s)	60
Radome color	White
Mounting way	Pole-holding
Mounting hardware(mm)	￠35-￠50

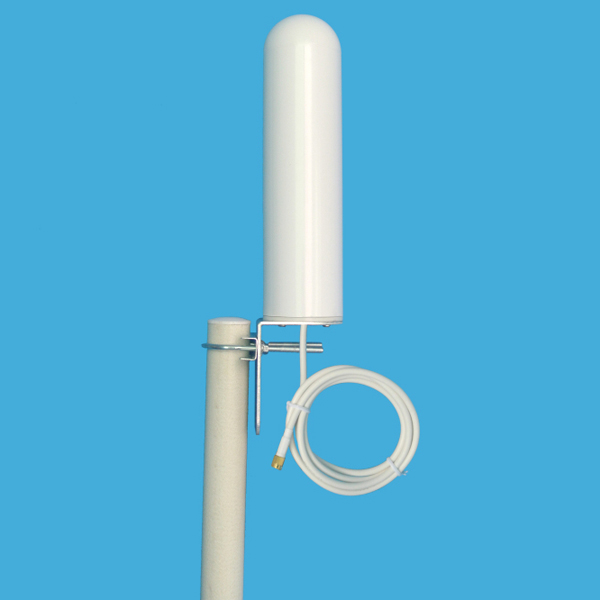

AMEISON manufacturer Outdoor Omnidirectional Antenna 5dbi SMA male 800-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system Images
